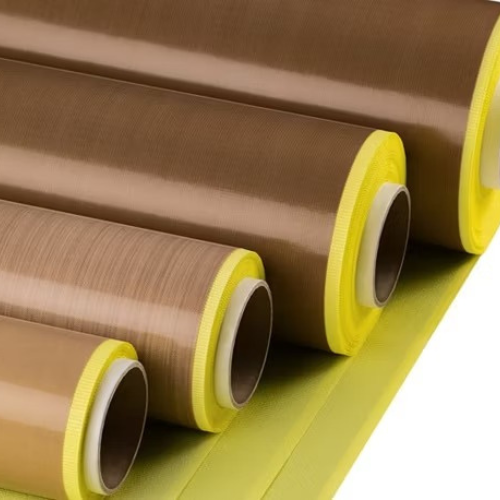

Our PTFE Coated Fiberglass Fabric with One Side Adhesive is engineered for demanding industrial applications where exceptional release properties, high temperature resistance, and mechanical strength are essential.
This fabric is coated on one side with a high-temperature, pressure-sensitive silicone adhesive, making it ideal for use in environments requiring:
High Heat Resistance
Fire Retardancy
Excellent Electrical Insulation
Durability & Mechanical Strength
We offer two adhesive systems tailored to different application needs:
Silicone Adhesive Coating
Temperature Range: -73°C to +260°C
Ideal for continuous high-temperature use
Acrylic Adhesive Coating
Offers high tack (strong initial grip)
Temperature Resistance up to 170°C
To protect the adhesive and ensure ease of use, the silicone adhesive side is covered with a corrugated yellow PVC liner. This prevents premature degradation and simplifies application.
Our adhesive-coated PTFE fiberglass fabrics are custom slit into various widths to meet your specific requirements.
| Products | Backing GSM | Thickness in mm Backing |
Thickness in mm Total |
Adhesion Strength N/5 CM | PSA Type | Liner Type | Temperature Resistance (°C) | Widths (mm) |
|---|---|---|---|---|---|---|---|---|
| 3008-3R | 120 | 0.07 | 0.125 | 22 | Silicone | Yellow PVC | -73 to 260 | 1000 |
| 3008-N-3R | 120 | 0.07 | 0.125 | 21 | Silicone | NO Line | -73 to 260 | 1000 |
| 6015-6R | 250 | 0.15 | 0.20 | 28 | Silicone | Yellow PVC | -73 to 260 | 1000 |
| 5515-5R | 255 | 0.14 | 0.19 | 25 | Silicone | Yellow PVC | -73 to 260 | 1000 |
| 5615-6R | 280 | 0.15 | 0.21 | 26 | Silicone | Yellow PVC | -73 to 260 | 1000 |
| 6015-5B | 230 | 0.15 | 0.19 | 28 | Silicone | Yellow PVC | -73 to 260 | 1000 |
| 6025-10R | 530 | 0.25 | 0.30 | 30 | Silicone | Yellow PVC | -73 to 260 | 1000 |
